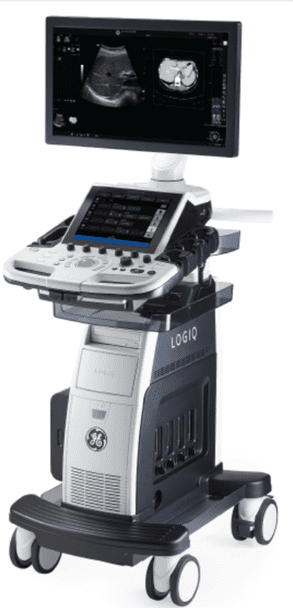

GE LOGIQ P9 R3 ULTRASOUND UNIT

Personalized, Patient-centric and practical ultrasound system.

The GE LOGIQ P9 R3 Ultrasound System is an easy-to-use system that enables fast exams through customizable user workflow and productivity tools. It creates a personalized patient-centric practical workflow that is ideal for your ultrasound exams. It introduces easy-to-access features and applications that allow you to perform immediate triages and comprehensive exams. It features innovative pages that provide personable and simplified user controls. It features a large 10.4-inch touch panel. There are no extra controls to slow you down. One can simply log in and select the appropriate exam type and begin scanning. The LOGIQ P9 includes a broad range of patient exams. It has excellent image quality and intuitive image optimization that requires only a few keystrokes. It has superb B-mode spatial and contrast resolution. It also has a wide selection of probes for excellent exam coverage including abdominal, small parts, vascular, cardiac, musculoskeletal, and OB/GYN Imaging.

It utilizes advanced tools that can be added as optional features to your system, such as B-flow to directly visualize blood flow without limitations of Doppler, 3D/4D enables you to acquire and construct volumetric images in real-time, Elastography to evaluate tissue stiffness, integrated Smart Stress echo package, Tissue Velocity Imaging (TVI) – a cardiac tool that is used to measure myocardial velocities longitudinally and evaluate systolic and diastolic functions, and Tissue Velocity (TVD) which measures the segmental velocity of myocardium longitudinally.

The LOGIQ P9 R3 system comes with easy access support and is designed for user comfort and easy workflow. With a large monitor and touchscreen and a fully articulating arm that allows you to swivel up and down. It is compact, lightweight, and has enhanced mobility by including a wireless LAN and Power Assistant battery. With the P9 you have automated tools that can help provide fast exams such as measure assistant for measurement of intensive studies. The user guidance technology also allows you to generate automatic measurements that can be edited or accepted. It also comes with a compare assistant that helps streamline comparison studies by allowing you to view prior and current studies side by side on the ultrasound monitor during an exam. It also has a scanning assistant that helps reduce keystrokes and exam time with a touch of a button.

The LOGIQ P9 R3 system provides consistent image quality, comprehensive application coverage, and ease of use that enables clinicians to make timely and confident decisions.

Features

  • LOGIQ P9 R3 general imaging ultrasound system provides strong performances through ease of use and personalized system.
  • Built upon Agile Acoustic Architecture technology, the LOGIQ P9 helps you achieve great images using innovative tools including CrossXBeam (Spatial Compounding), SRI HD (Speckle Reduction Imaging in High Definition), and Coded Harmonics. Workflow features such as Raw Data for post-processing of images, Automatic Optimization, Easy 3D and Virtual Convex.
  • The simple and compact design of the LOGIQ P9 include a 21.5 inch high-resolution color flat panel wide screen monitor with height-fixed, tilt and swivel arm, fixed console with 810mm height operating panel, high cabinet,10.4 inch wide color LCD touch screen, three active probe ports.
  • Scanning modes include B-Mode, M-Mode, Color Flow, Pulsed Wave, and Power Doppler. Other system features include: Windows** 10 operating platform, 776MB cine memory, approximately 500 GB internal hard drive, footrest, physical and digital user programmable presets, My Page, My Trainer, digital TGC, Touch Control, digital A/N keyboard and digital copy of user documentation (eIFU).
  • Initial installation includes a five-year standard warranty including probes and two days of On-site Applications Training. Training must be completed within six (6) months after Product delivery, otherwise GE Healthcare’s obligation to provide the training will expire without refund.
  • Additional On-site Applications Training days are available for purchase.
